Product Description

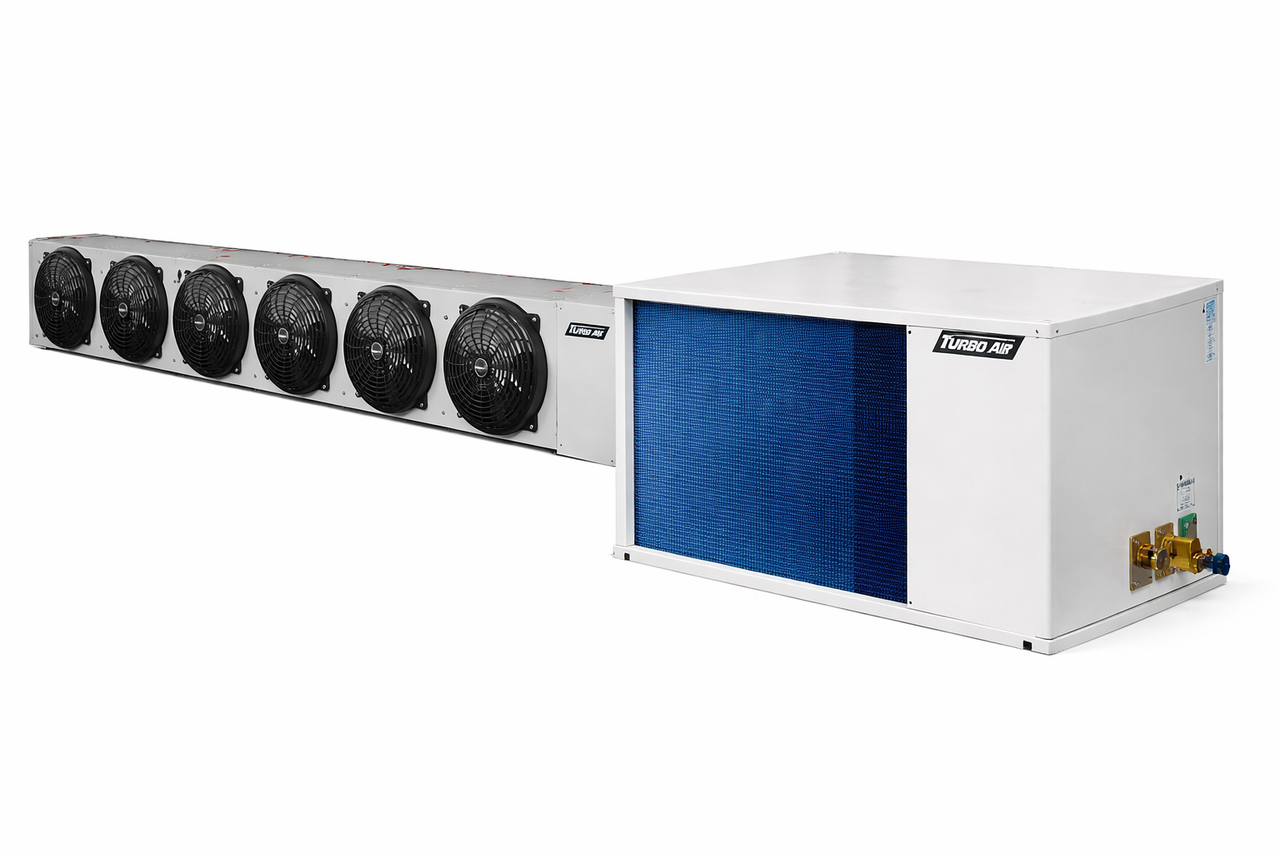

Refrigeration System 5HP Medium Temperature UL / C-UL listed for indoor-outdoor use
42347 BTU

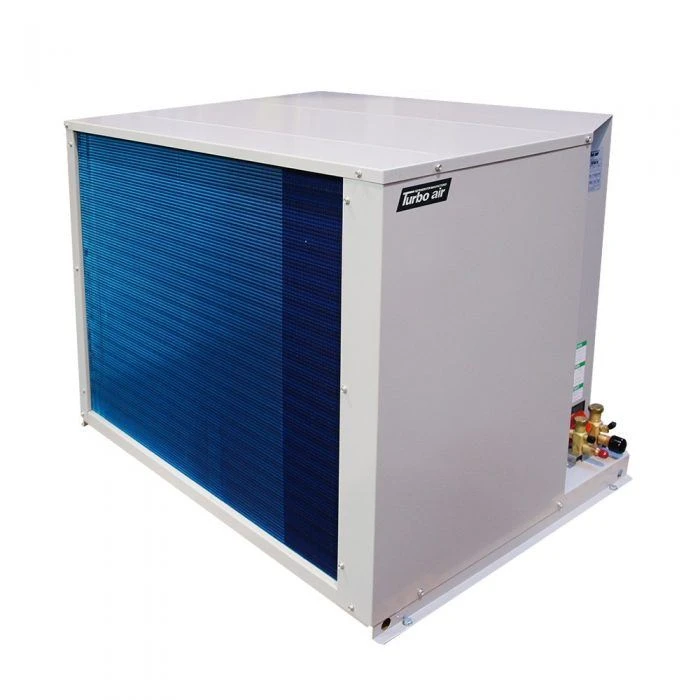

(1) Outdoor medium temperature condensing unit model TS050MR 208-230/1/60 or 208-230/3/60 with 5HP scroll compressor .
Blue anti-corrosion-fin increases the life span of the coil.
Seamless inner groove copper tube increases the heat exchange rate by reducing the space between the fin and copper tube.
Highest quality compressor in the world.
Head pressure control stabilizes the freezing of liquid line, minimizes formation of flash gas to increase efficiency of the system, and prevents compressor damage by controlling high pressure.
Experienced engineers have designed the system for maximum efficiency.
Fan Blades : Specifically matched with motors and coil for maximum air movement and cooling.
Control box is designed for easy installation.
Low pressure control is adjustable.
All the parts are compliant with industry standards and interchangeable with readily available parts.
Wiring : Easily accessible. Compressor comes with a wiring harness that is manufactured with connections that will not come loose with vibration.
Control box and service valves are located outside for easy service.
Base : Heavy duty steel. Legs are 2-1/6” tall
Cabinet : Prepainted with galvanized body. Protects against corrosion.
All products carry UL, cUL, ISO 9001 approvals.

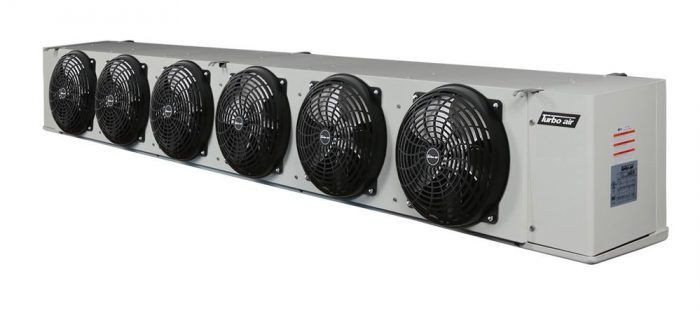

(1) Air defrost evaporator coil 115/1/60 with solenoid valve, expansion valve, thermostat.
Blue anti-corrosion-fin increases the life span of the coil.
Air-pass guard is located at the bottom of the coil to improve heat exchange rate.
Easy to replace defrost heater (LED model).
Corrugated fin is used to increase heat exchanges rate by expanding the surface area.
Even in confined space, all parts can be reached easily by opening the front cover.
Location of power connector makes replacement of motor convenient.
Seamless inner groove copper tube increases the heat exchange rate by reducing the space between the fin and copper tube.
Venturi type distributor and precise orifice hole are used to minimize the pressure drop and maximize the freezing capacity respectively.
Even in confined space, all parts can be reached easily by opening the front cover.
Thermostat is installed to prevent over temperature on heater.
Circuit opens automatically over 70°F.
Parts available:
Expansion Valve (Sporlan) (Factory Pre-mounted)
Solenoid Valve (Sporlan) (Factory Pre-mounted)
Thermostat (Johnson Control) (Shipped Loose)
The spiral fan guard enables cold air to be delivered efficiently and thoroughly.
The protruding fan and motor placement substantially reduce vibration and noise.
EC Motor (Dual Speed) for high energy efficiency.
Anti-oxidizing stainless steel mounting and bolts.
